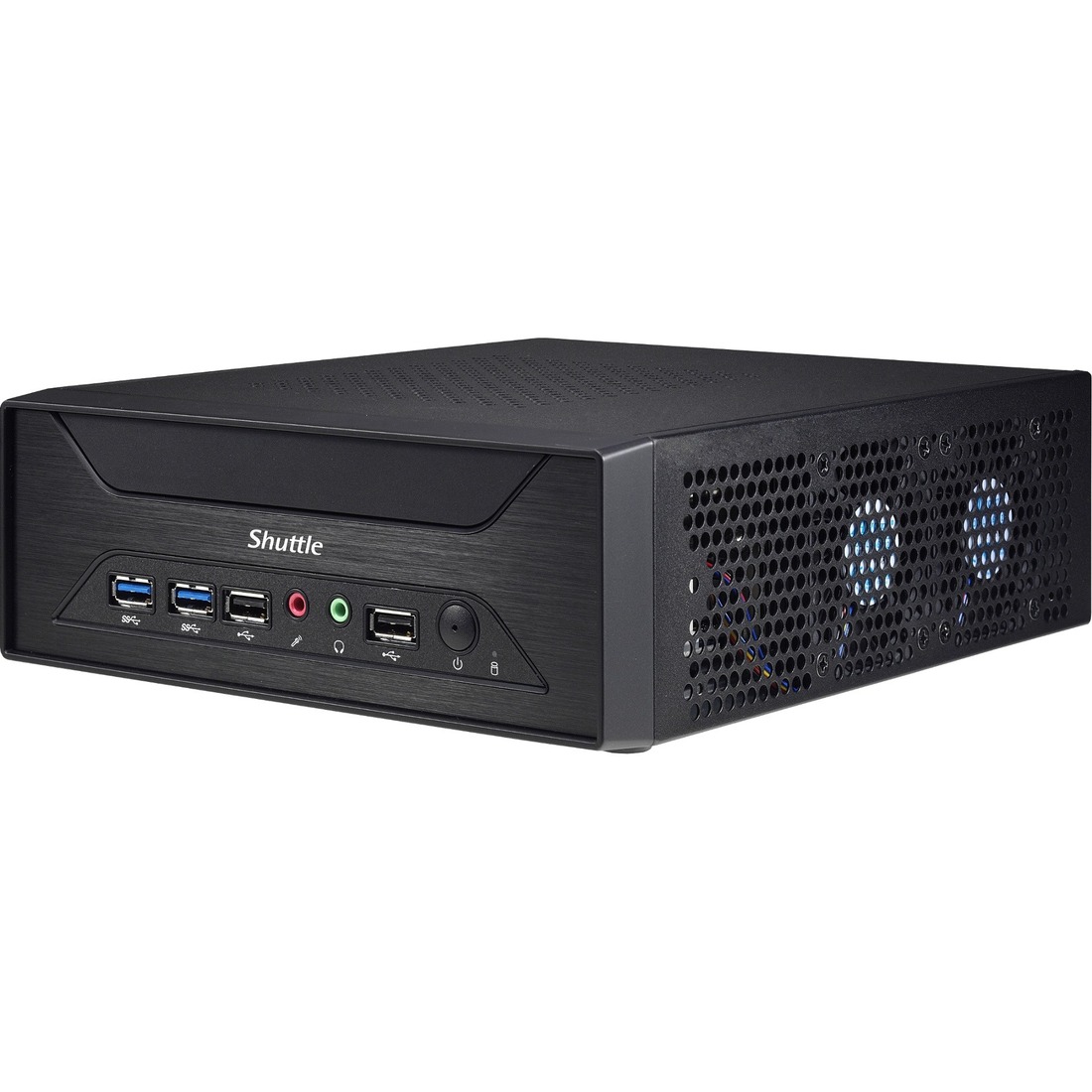

Shuttle XH410G Barebone System - Socket LGA-1200 - 1 x Processor Support - Intel H410 Express Chip - 64 GB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 - 1 2.5" Bay(s) - Processor Support (Core i3, Core i5, Core i7, Core i9, Pentium, Celeron) - Gigabit Ethernet - 4 USB 3.2 Gen 1 Port(s)180 W

Our Product No :   40657

MPN Number :   XH410G

Manufacturer :  Shuttle Inc

Model No :   XH410G

images

Pre Order

General Information
Manufacturer Shuttle, Inc
Manufacturer Website Address http://www.shuttle.com
Brand Name Shuttle
Product Model XH410G
Product Name XH410G Barebone System
Marketing Information

3-liter mini-PC with a PCIE x16 slot enables more functionality

The new XH410G is built with performance and expandability in mind. Powered by the Intel ®H410 chipset and the 10th Gen LGA1200 Comet Lake 65W CPU, the XH410G can deliver reliable and high performance on complex tasks processing and 4K resolution content. Equipped one HDMI 2.0 and VGA, the XH410G supports dual independent displays, providing high productivity and dynamic visualization for digital signage and surveillance monitoring. With one PCI-E x16 expansion slot, it's able to install an extra graphics card, capture card, or more to meet the diverse application requirements. The XH410G provides multiple I/O ports, including 4xUSB 2.0, 4xUSB 3.2 Gen1, SATA 6Gbps, 2xM.2, and Intel® Gigabit LAN. As stated above, XH410G is suitable for the workstation, surveillance, and video wall applications.

Intel® 10th Gen processors and 4K/UHD Visuals

Based on the new H410 chipset, the XH410G is ready for Intel 10th Gen processors in the LGA1200 package. With up to 10 cores of processing power, the platform supports up to 64GB (32GBx2) of DDR4 memory for multi-task computing. Equipped with Intel UHD Graphics, the XH410G is capable of driving content that is fluent and stutter-free in 4K UHD.

Dual Display Productivity

With one HDMI 2.0 and VGA outputs built-in, the XH410G supports dual independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

Single PCIE x16 Slot

With built-in a PCI-E x16 expansion slot, the XH410G is able to install a various add-on cards such as graphics card (multi-display), capture card, multi-network card, drawing graphics card for various applications.

Strong Expansion Capacity with M.2

With native M.2 2280 Type M and one M.2 2230 Type E slot, the XH410G offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.

Rich Connectivity Interfaces

The XH410G provides 4xUSB 2.0, 4xUSB 3.2 Gen 1, and SATA 6Gbps. Besides, there's one RS232 for optional port, helping connect to peripherals such as thermal printer, automation, or barcode scanner.

High-Speed Gigabit LAN

The XH410G has built-in one Intel® i219LM Gigabit LAN and supports Wake On LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.

Exclusive Cooling Technology

The XH410G features Shuttle's exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

24/7 Certified, Operable in 0-50°C

Officially approved for 24/7 operation. The XH410G uses industrial capacitors in order to meet the environmental operation demands of commercial applications.

VESA Mount-Ready

The XH410G is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.

Power on by RTC

Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic 'Power On' and 'Power Off' times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.

Product Type Barebone System
Processor
Processor Socket Socket LGA-1200
Processor Supported
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Pentium
  • Celeron
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model H410 Express
Memory
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2933/PC4-23466
Controllers
Controller Type Serial ATA/600
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Interfaces/Ports
HDMI (Rear) Yes
Software
Operating System Supported
  • Windows 10 x64
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage 180 W
Physical Characteristics
Height 78.5 mm
Width 200 mm
Depth 250 mm
