EIZO DuraVision Video Decoder - Functions: Video Decoding, Video Streaming - 3840 x 2160 - H.264, MJPEG, H.265 - HDMINetwork (RJ-45)

  • 2 Year
  • Network (RJ-45)
  • HDMI
  • H.264MJPEGH.265
  • 3840 x 2160
  • Video DecodingVideo Streaming
  • Satellite Pro R50-C-179 Notebook Lithium Ion Battery AC Adapter
  • 276.7 g

Our Product No :   39057

MPN Number :   DX0211-IP

Manufacturer :  Eizo

images

Pre Order

  • Product Attributes :

    • Physical Characteristics

      • 199.9 mm

      • 270 mm

      • 26.9 mm

      • 276.7 g

    • Miscellaneous

      • Satellite Pro R50-C-179 Notebook Lithium Ion Battery AC Adapter

    • Technical Information

      • Video DecodingVideo Streaming

      • 3840 x 2160

      • H.264MJPEGH.265

    • Interfaces/Ports

      • HDMI

      • Network (RJ-45)

    • Warranty

      • 2 Year

General Information
Manufacturer EIZO
Manufacturer Part Number DX0211-IP
Manufacturer Website Address http://www.eizo.co.uk
Brand Name EIZO
Product Line DuraVision

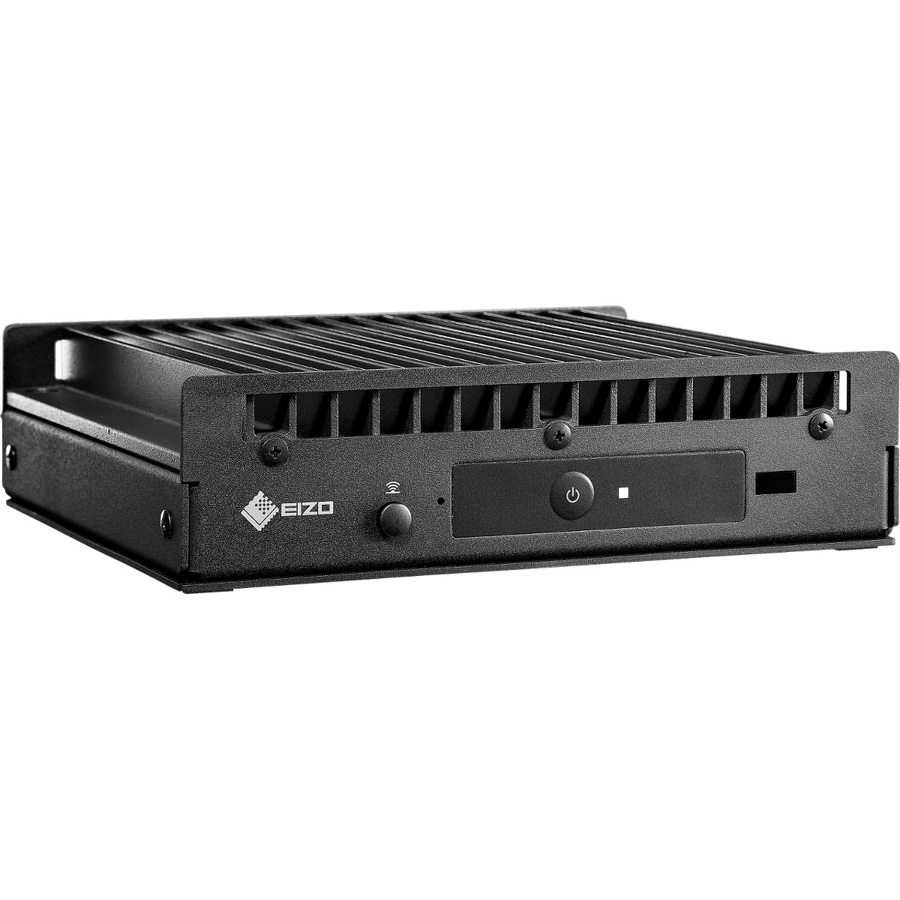

Product Name DuraVision Video Decoder
Marketing Information

Integrated solution

The DuraVision DX0211-IP can connect to an IP camera or switch and supply video data directly to a connected monitor. It does not require a PC, software or any other hardware to operate, which greatly simplifies installation and saves time and labour costs. This also eliminates several of the potential points of failure typically associated with a conventional setup by significantly reducing the amount of equipment needed to manage sensitive visual data.

Box solution features innovative decoding technology

The DuraVision DX0211-IP features the innovative decoding technology used in EIZOs unique IP decoding monitors in an external box format. It decodes and compresses multiple feeds from IP cameras in order to display video data in real-time. It can be used in conjunction with different monitor sizes and resolutions, making it ideal for video walls and multi-monitor environments.

Video decoding

The DuraVision DX0211-IP can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real-time in order to assess any situation quickly. The decoding technology also ensures a high fps (frames per second) for displayed content, even when streaming high-resolution video data. For example, 16 Full HD (1920 x 1080) video feeds displayed simultaneously on a single monitor consistently achieve 20 fps.

4K output

The DuraVision DX0211-IP features two HDMI outputs that support 4K UHD resolution (3840 x 2160) on up to two monitors. This allows users to flexibly combine different resolutions in a viewing environment, such as a Full HD and 4K displays.

Live streaming directly from IP cameras

Connecting IP cameras directly to the DuraVision DX0211-IP facilitates the live streaming of video data without a decentralised recording solution, such as edge recording or cloud archiving. This offers the ideal solution for scenarios that require live streaming, but for which the storage of recorded images is not permitted.

VMS-independent fallback solution

VMS forms the basis for reliable video playback in modern VSS solutions. Even though the platform is protected from foreseeable events thanks to server redundancy, the VMS solution that establishes a connection to the operators via a client should be seen as a critical point. If this system comes under attack or is disabled, the IP decoding solution which operates independently of the VMS can provide a redundant solution. To achieve this, it is simply connected directly to the surveillance cameras, the network connection of which continues to operate.

Adjustable screen layout

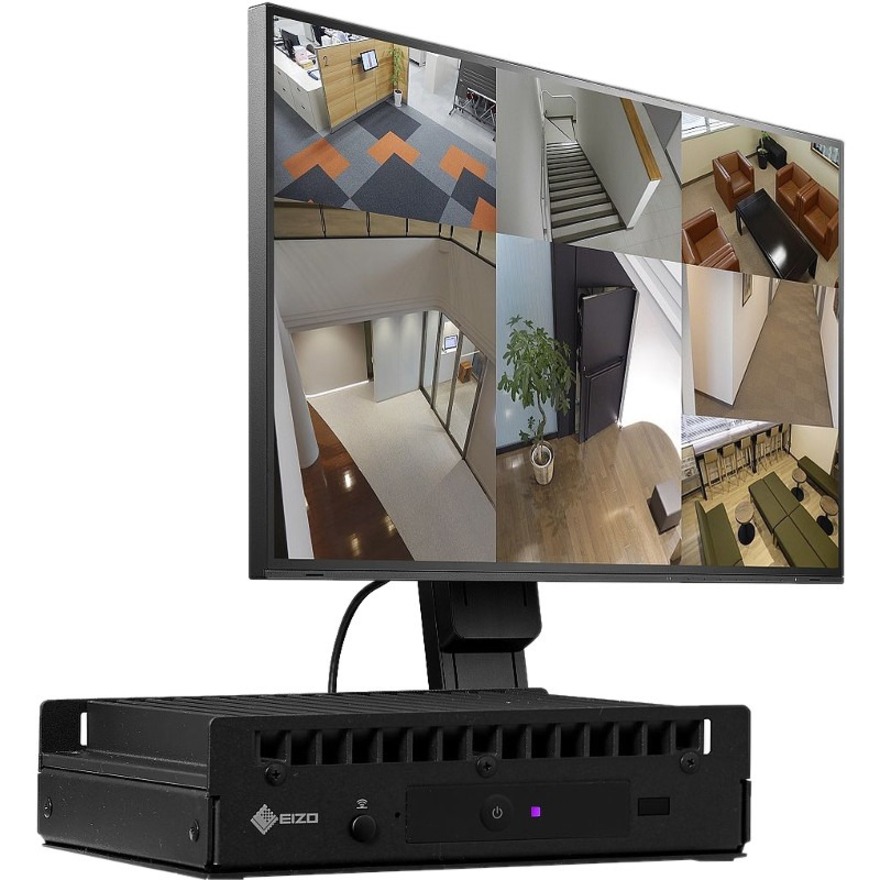

You can easily adjust the layout of the video streams with seven default options, displaying up to 32 video images via the user-friendly web UI. The flexible arrangement of screens on each monitor in a custom layout also allows you to fulfil individual viewing needs. By means of a custom layout, you can merge individual windows to focus on one specific area, or split them to see more than one on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

Customisable event response

The web API supports customisable integration with the local VMS. This allows events or alarm monitoring to be communicated from the VMS to the IP decoding box, instructing it to respond to a given event. The DuraVision DX0211-IP then adjusts the display of the receiving monitor to operate accordingly.

Product Type Video Decoder
Technical Information
Functions
  • Video Decoding
  • Video Streaming
Maximum Resolution 3840 x 2160
Video Formats
  • H.264
  • MJPEG
  • H.265
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Physical Characteristics
Height 44.2 mm
Width 165 mm
Depth 130 mm
Weight (Approximate) 800 g
Miscellaneous
Package Contents
  • DuraVision Video Decoder
  • Short DisplayPort Signal Cable - DisplayPort
  • Manual
  • Quick Guide
Warranty
Limited Warranty 2 Year
