Shuttle XPC slim XH110G Barebone System Slim PC - Intel H110 Express Chipset - Socket H4 LGA-1151 - 32 GB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - Serial ATA/600 - Intel HD Graphics Integrated - 1 x Total Bays - 1 2.5" Bay(s) - 1 x Total Expansion Slots - Processor Support (Core i7, Core i3, Core i5, Celeron, Pentium) - Gigabit Ethernet - 2 USB 3.0 Port(s)180 W

  • 1
  • 120 V AC230 V AC
  • Gigabit Ethernet
  • NVIDIA
  • P1000
  • 1
  • Socket H4 LGA-1151
  • Core i7Core i5Core i3PentiumCeleron

Our Product No :   34197

MPN Number :   XH110G

Manufacturer :  Shuttle Inc

Model No :   XH110G

images

Pre Order

  • Product Attributes :

    • Physical Characteristics

      • 199.9 mm

      • 270 mm

      • 26.9 mm

      • Wall Mountable

    • Interfaces/Ports

      • 4

      • 1

      • 1

    • Processor & Chipset

      • NVIDIA

      • P1000

      • Socket H4 LGA-1151

      • Core i7Core i5Core i3PentiumCeleron

      • 64-bit Processing

    • Memory

      • DDR4 SDRAM

      • 32 GB

      • DDR3L-1600/PC3-12800

      • 2

    • Display & Graphics

      • Intel

      • HD Graphics 610

    • Network & Communication

      • Gigabit Ethernet

    • Software

      • Windows 10Windows 8.1Windows 7Linux

    • Power Description

      • 120 V AC230 V AC

      • 90 W

    • I/O Expansions

      • 1

      • 1

      • 2

      • 1

    • Controllers

      • Serial ATA/600

General Information
ManufacturerShuttle, Inc
Manufacturer Part NumberXH110G
Manufacturer Website Addresshttp://www.shuttle.com
Brand NameShuttle
Product LineXPC slim
Product ModelXH110G
Product NameXPC slim XH110G Barebone System
Marketing Information

Compact and Robust Multi-display Digital Signage Player -XH110G

Shuttle debuts the first 3-liter Slim PC XH110G with new single-slot design to install multi-display graphics card in the market today. Equipped with Intel® H110 chipset, this model also supports both Intel® Kabylake and Skylake LGA 1151 processors. With Intel® built-in HD graphics engine, its deigned to support 4K/Ultra HD video content. The XH110G is a 3-liter model with strong graphics support via PCI-E x16 expansion slot for various add-on cards such as graphics card (multi-display), capture card, multi-network card, drawing graphics card, or more. The XH110G provides multiple I/O ports and high-speed storage interfaces, including USB 2.0, USB 3.0, SATA 6Gbps, M.2, and Intel® Gigabit LAN It is impressively versatile and high-performance mini PCs made to by easily integrated into a variety of digital signage markets. Its slim metal chassis, including VESA mount capability, versatile connectivity and reliable operation in up to 50°C temperatures makes XH110G is very suitable for workstation or surveillance and video wall applications.

Support Intel® 6th /7th Generation Core™ Processor

Equipped with the new LGA 1151 socket, the all-new XH110G supports both Intel® 6th/ 7th Generation (Skylake/Kabylake) Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors. Built-in DirectX 12 compatibility with the Intel® HD Graphics significantly increases CPU or GPU.

Support PCI-E X16 slot

With new refined design makes the first 3-liter XH110G support a PCI-E slot in such small form factor. With built-in a PCI-E x16 expansion slot, the XH110G is able to install r various add-on cards such as graphics card (multi-display), capture card, multi-network card, drawing graphics card for various applications.

Support Dual Displays

Display imaging on up to two screens via HDMI and D-sub video outputs. Use an adaptor to convert HDMI into DVI interface for diversified signal selection.

High-speed data transmission interface

The XH110G features native SATA 6Gbps and USB 3.0 high-speed storage interfaces. A USB 3.0 port which supports up to 5 Gbps and provides 10 times greater data access speed than a USB 2.0 port.

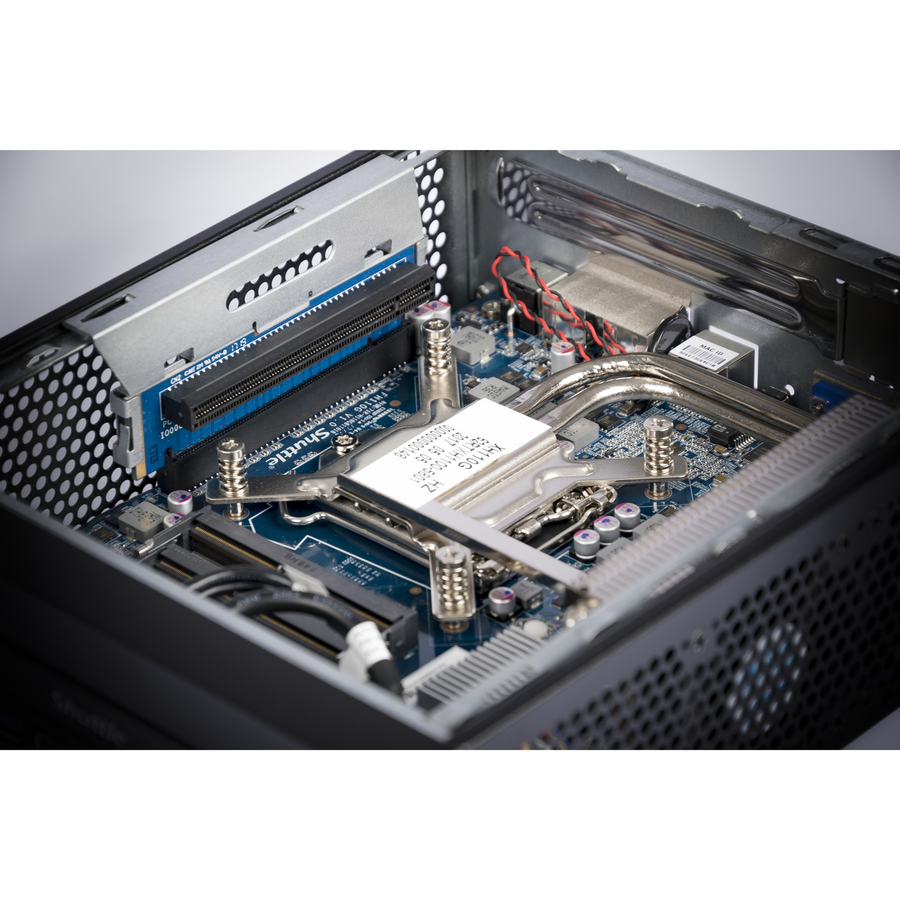

Heat pipe cooling technology

The XH110G features Shuttles exclusive heat pipe cooling module with smart fan design. The precise vent design allows for constant air circulation between the inside and outside of the machine, resulting in high stability and low noise for long-term operation.

Support Intel® Gigabit LAN

The XH110G has built-in Intel® i211 Gigabit LAN and supports Wake On LAN to provide high-speed data transfer capability as well as a better compatibility for business network environment.

24/7 Nonstop Operation

The XH110G is officially approved for 24/7 permanent operation. Thanks to Shuttles low-power consumption design and provide a stable operating environment, this PC runs highly reliable for long-term demands of digital signage or other vertical applications.

Product TypeBarebone System
Processor & Chipset
Processor SocketSocket H4 LGA-1151
Processor Supported
  • Core i7
  • Core i3
  • Core i5
  • Celeron
  • Pentium
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelH110 Express
Memory
Maximum Memory32 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2400/PC4-19200
Controllers
Controller TypeSerial ATA/600
Display & Graphics
Graphics Controller ManufacturerIntel
Graphics Controller ModelHD Graphics
Network & Communication
Ethernet TechnologyGigabit Ethernet
I/O Expansions
Interfaces/Ports
Software
Operating System Supported
  • Linux
  • Windows 7
  • Windows 10
  • Windows 7 x64
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage180 W
Physical Characteristics
Form FactorSlim PC
Height76.2 mm
Width200.7 mm
Depth248.9 mm
