Shuttle XPC cube SZ270R8 Barebone System Mini PC - Intel Z270 Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - Serial ATA/600 RAID Supported Controller - Intel HD Graphics Integrated - 4 x Total Bays - 4 3.5" Bay(s) - 2 x Total Expansion Slots - Processor Support (Core i7, Core i3, Core i5, Pentium, Celeron) - Gigabit Ethernet - 6 USB 3.0 Port(s)500 W

contact us login

Our Product No :   34259

MPN Number :   SZ270R8

Manufacturer :  Shuttle Inc

Model No :   SZ270R8

images

Pre Order

General Information
ManufacturerShuttle, Inc
Manufacturer Part NumberSZ270R8
Manufacturer Website Addresshttp://www.shuttle.com
Brand NameShuttle
Product LineXPC cube
Product ModelSZ270R8

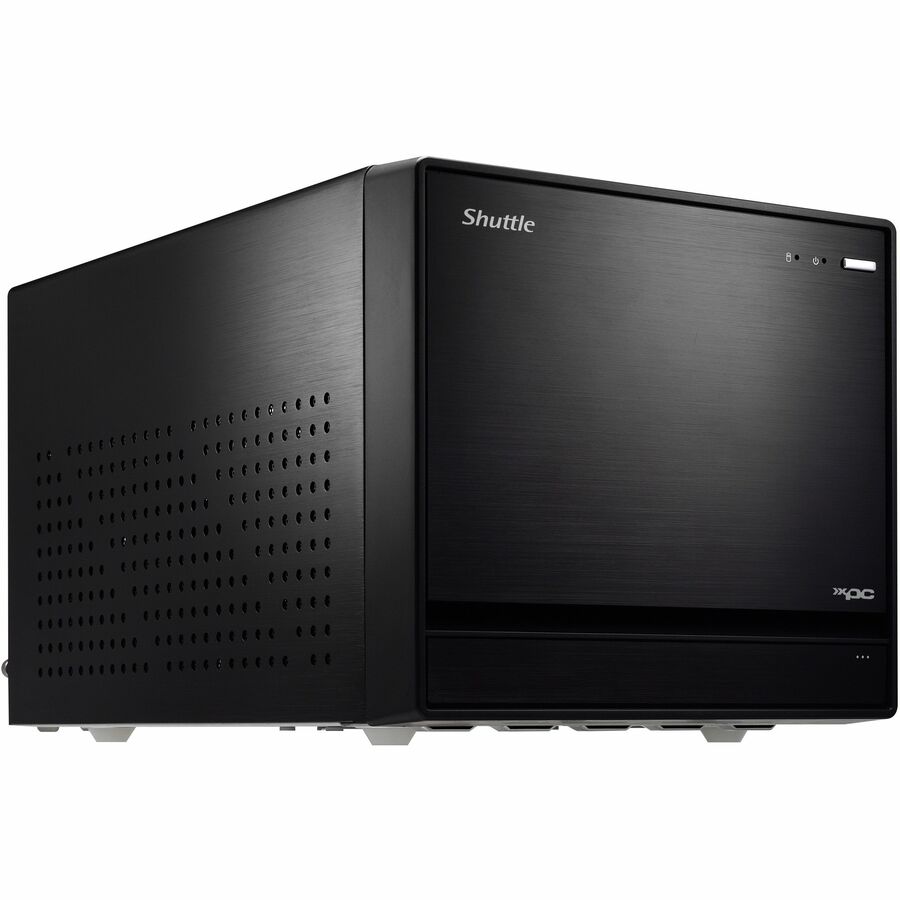

Product NameXPC cube SZ270R8 Barebone System
Marketing Information

New Mini PC packs 4K and High-end VGA cards with Kabylake platform

The SZ270R8 with a stylish aluminum chassis is three times smaller than tower PC with impressive expansion capability and storage capacity at a compelling price. With a new internal design, the SZ270R8 can support large-format dual-slot graphics cards and install up to four 3.5" hard as well as support Intel® Rapid Storage Technology (Intel® RST), providing a variety of RAID mode selection . Equipped with Intel® Z270 chipset, this new high performance XPC cube is designed for to drive Intel® Kabylake LGA 1151 processors and deliver outstanding speed performance. With Intel® HD graphics, the SZ270R8 is able to support 4K/Ultra HD video playback. Display imaging on up to three independent screens via HDMI or DisplayPort. The SZ270R8 provides one PCI-E x16 slot (Support Dual Slot VGA card) that supports professional graphics cards for gaming PC, video wall, and more application. The SZ270R8 is built-in Dual Gigabit LAN that supports Wake on LAN and Teaming Mode, two M.2 2280 and one M.2 2230 slots, 10 USB ports(USB3.0*6), as well as optional RS232/LPT with strong expansion capability. Thanks to its exclusive I.C.E.2 heat pipe technology and an 80 Plus Silver 500W power supply, makes the SZ270R8 highly stable and energy-efficient for long-term operation.

Support Intel® 7th generation Core™ processor

Equipped with the new LGA 1151 socket, the SZ270R8 supports both Intel® 6th Gen (Skylake) and Intel® 7th Gen (Kabylake) Core™ i3/i5/i7, Pentium®, and Celeron® 95W processors. Built-in DirectX 12 compatible with the Intel® HD Graphics, it is significantly increased CPU or GPU performance.

Support Intel® Optane™ Technology

With a 7th Gen Intel® Core™ processor, the SZ270R8 supports the latest Intel® Optane™ technology which makes your overall system performance up to 28% faster to deliver amazing speed.

Support Intel® Rapid Storage Technology

The SZ270R8 is equipped with Intel® latest Z270 chipset which supports for four SATA 6Gbps slots as well as Intel® Rapid Storage Technology. It provides RAID 0/1/5/10 disk array modes, allowing for faster and more secured data access rates.

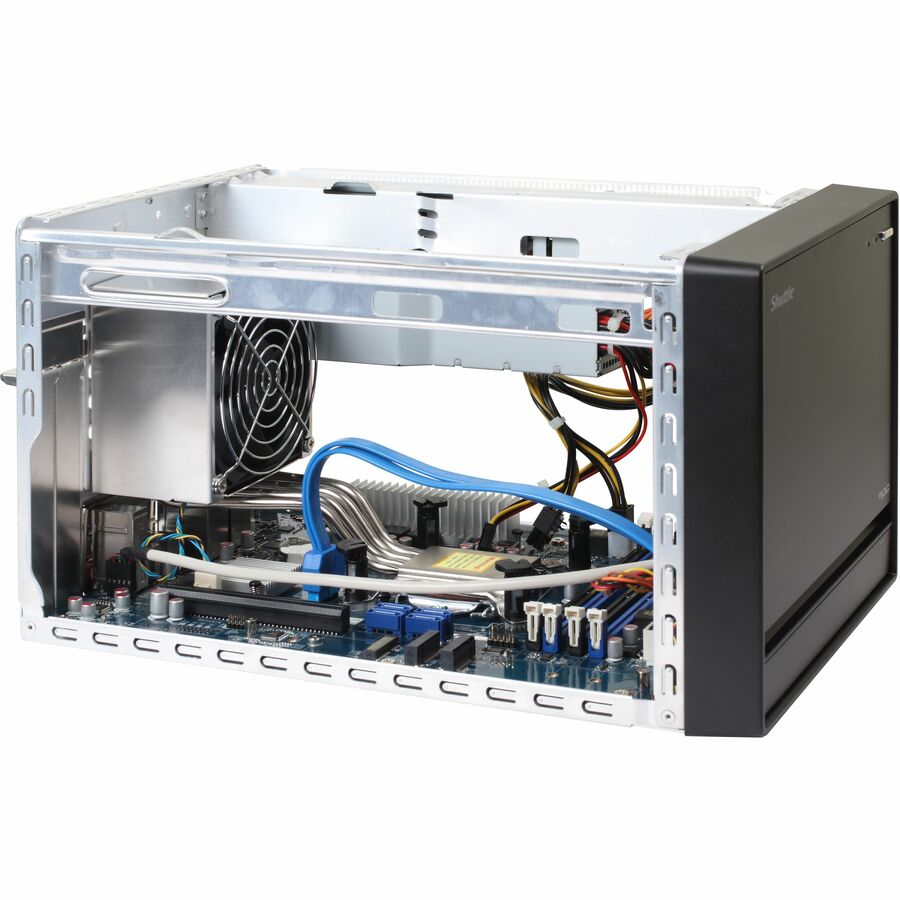

Independent HDD cooling design

Set up an 8cm fan in the front of inside case, can effectively remove the waste heat from hard drive to maintain stable and long-term operation.

Support 4K Ultra HD

The SZ270R8 provides DisplayPort and HDMI video outputs to support 4K Ultra HD (3840x2160). With four times the resolution of Full HD, viewers can enjoy super detailed and crystal clear imaging of 4K.

Three M.2 expansion slots

The SZ270R8 is built-in two M.2 2280 with type M and one M.2 2230 with type A/E slots to install M.2 SSD and a WiFi card, or other compatible device, providing a strong expansion capability.

Support Wake ON LAN

Use BIOS to set up the Wake ON LAN function so that users can power-on from sleep mode, rest mode, or when powered off via the internet.

The Watchdog- Protecting System Security

Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttles Watch Dog utility to maintain normal operation and stability of the system at all times.

80Plus Silver Certified 500W Power Supply

Shuttles SZ270R8 is equipped with an 80 Plus Sliver 500W power supply for guaranteed energy efficiency and energy saving. Shuttles 500W power supply cuts down on unnecessary power consumption for a higher level of energy saving.

Product TypeBarebone System
Processor & Chipset
Processor SocketSocket H4 LGA-1151
Processor Supported
  • Core i7
  • Core i3
  • Core i5
  • Pentium
  • Celeron
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelZ270
Memory
Maximum Memory64 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2133/PC4-17000
Controllers
Controller TypeSerial ATA/600
RAID SupportedYes
Display & Graphics
Graphics Controller ManufacturerIntel
Graphics Controller ModelHD Graphics
Network & Communication
Ethernet TechnologyGigabit Ethernet
I/O Expansions
Interfaces/Ports
Total Number of USB Ports10
Software
Operating System Supported
  • Windows 7
  • Linux
  • Windows 10
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage500 W
Physical Characteristics
Form FactorMini PC
Height197.9 mm
Width215.9 mm
Depth130 mm
