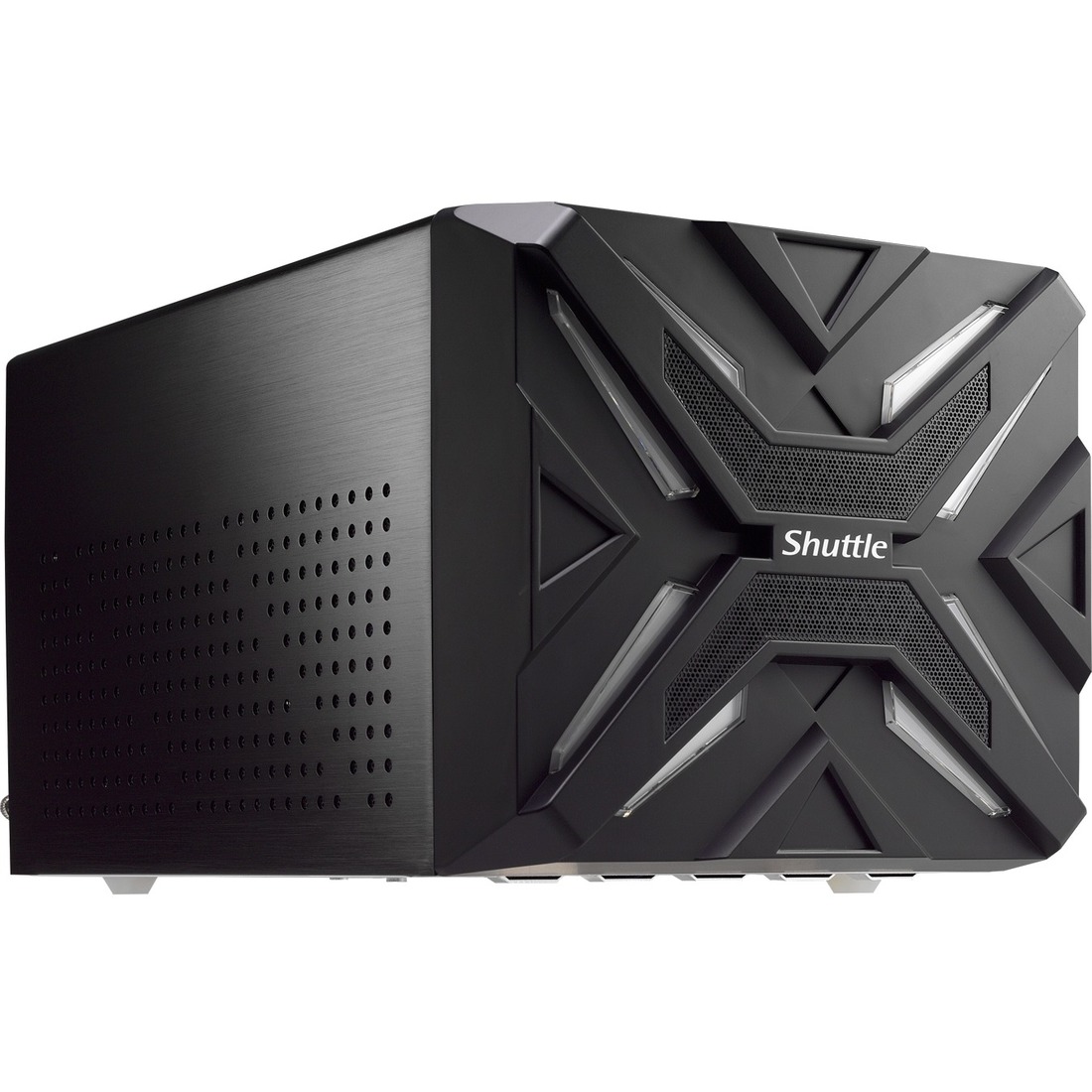

Shuttle XPC cube SZ270R9 Gaming Barebone System Small Form Factor - Intel Z270 Express Chipset - Socket H4 LGA-1151 - 64 GB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - Serial ATA/600 - Intel Integrated - 4 x Total Bays - 4 3.5" Bay(s) - 2 x Total Expansion Slots - Processor Support (Core i7, Core i3, Core i5) - Gigabit Ethernet - 6 USB 3.0 Port(s)500 W

  • 120 V AC230 V AC
  • Gigabit Ethernet
  • P1000
  • 1
  • 1
  • Socket H4 LGA-1151
  • Core i7Core i5Core i3PentiumCeleron

Our Product No :   34260

MPN Number :   SZ270R9

Manufacturer :  Shuttle Inc

Model No :   SZ270R9


Pre Order

  • Product Attributes :

    • Physical Characteristics

      • 199.9 mm

      • 270 mm

      • 26.9 mm

      • Wall Mountable

    • Interfaces/Ports

      • 4

      • 1

      • 1

    • Processor & Chipset

      • NVIDIA

      • P1000

      • Socket H4 LGA-1151

      • Core i7Core i5Core i3PentiumCeleron

      • 64-bit Processing

    • Memory

      • DDR4 SDRAM

      • 32 GB

      • DDR3L-1600/PC3-12800

      • 2

    • Display & Graphics

      • Intel

    • Network & Communication

      • Gigabit Ethernet

    • Software

      • Windows 10Windows 8.1Windows 7Linux

    • Power Description

      • 120 V AC230 V AC

      • 90 W

    • I/O Expansions

      • 1

      • 1

      • 2

      • 1

      • 1

    • Controllers

      • Serial ATA/600

General Information
ManufacturerShuttle, Inc
Manufacturer Part NumberSZ270R9
Manufacturer Website Address
Brand NameShuttle
Product LineXPC cube
Product ModelSZ270R9
Product NameXPC cube SZ270R9 Barebone System
Marketing Information

Light up the BattlefieldThe Compact, Powerful Gaming PC

Shuttle, the leading mini-PC designer, introduces its new Gaming Mini-PC model SZ270R9, that supports the 7th Gen Intel® Core™ i7 processor and delivers the best performance for gaming and VR. With RGB lighting technology, the all-new R9 represents your lifestyle with a lightning-bolt design and customizable color scheme. Created for performance enthusiasts, the SZ270R9 provides dedicated XPC Overclock Software and a Turbo button on the top of the front panel for real-time overclocking using a single button. Small as it gets, the new R9 chassis offers space for up to four 3.5" Hard Disk and two NVMe SSDs and supports large size dual-slot graphics cards. Built-in Dual Intel Gigabit LAN, 500 Watt 80 PLUS SILVER PSU, three M.2 and ten USB ports, the SZ270R9 comes packed with power and expandability in a small package, perfect for LAN parties.

Performance of Your Choice

With a wide range support of Intel® Core™ processors, the SZ270R9 lets you to take your game where you want it to go. The SZ270R9 features smooth 4K UHD video playback and offers power efficiency, high bandwidth 1.2V DDR4 2133/2400 memory support up to 64GB max capacity.

XPC Overclock Tool

Master your system with our XPC Overclock tool, used to monitor the system and CPUs temperature, usage, clock speed and voltage in real time to ensure the best system stability. The XPC Overclock took is available in eight languages and supports Windows 10 64-bit only.

Your Style. Your Way

Personalize your gaming rig with XPC RGB light control function. With six built-in default colors, three different light effects, and an RGB pallet bar, you can easily adjust colors for different modes to give your SZ270R9 a personal touch.

Instant Overclocking in One Touch

There is an easy way for instant performance boost. The SZ270R9 has a Turbo button on its top of the front panel, users do not need to set complex overclocking parameters through the BIOS, simply press the turbo button then automatically loads the most optimized overclocking configuration fast and easy.

Proper Cooling While Gaming

Configured with four copper tube-pipes, Shuttles patented I.C.E2 heat-pipe technology uses convection cooling to dissipate heat away from and around the CPU while operating at the sound of a whisper.

Perfect Spacing for Graphics in Small Box

Shuttle SZ270R9 all-new mechanism supports dual¬-slot graphics card to boost performance for gaming.


Shuttles SZ270R9 supports the latest storage standards so users can connect any ultra-fast storage devices and accelerate performance, especially while gaming.

Dual Intel LAN

Built-in dual Intel Gigabit LAN with Teaming function means twice the transmission bandwidth, for effective high speed data transmission and faster, smoother gaming.

Immersive VR Experience

The best cutting edge technologies provide users with an impressive VR experience.

Product TypeGaming Barebone System
Processor & Chipset
Processor SocketSocket H4 LGA-1151
Processor Supported
  • Core i7
  • Core i3
  • Core i5
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelZ270 Express
Maximum Memory64 GB
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2400/PC4-19200
Controller TypeSerial ATA/600
Display & Graphics
Graphics Controller ManufacturerIntel
Network & Communication
Ethernet TechnologyGigabit Ethernet
I/O Expansions
Total Number of USB Ports10
Operating System Supported
  • Windows 7 x64
  • Windows 10 x64
  • Linux
  • Windows 10
  • Windows 7
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage500 W
Physical Characteristics
Form FactorSmall Form Factor
Height198 mm
Width216 mm
Depth332 mm
